Brands |

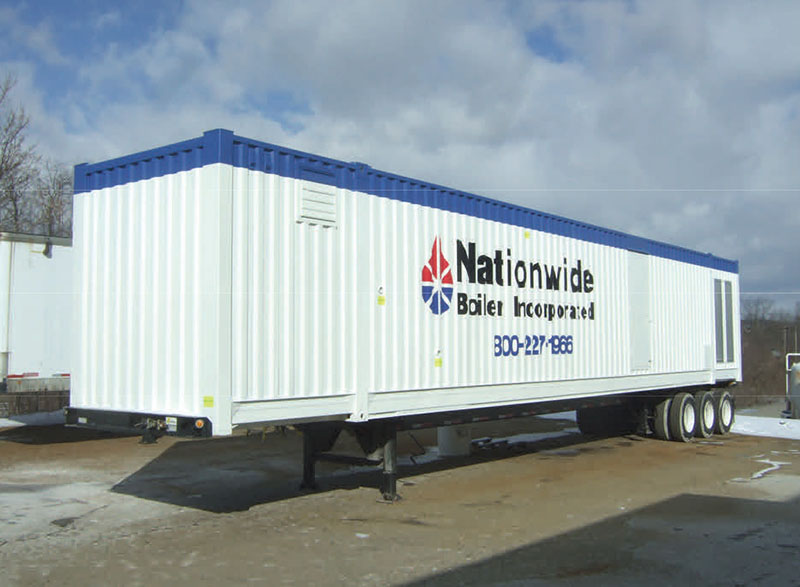

N/A Nationwide Boiler's |
Boiler Capacity |
N/A 800 hp27,600 lb/hr |
Design Pressure |
N/A 250 psig |
NBI Tag # |
N/A B750 B751 |
Features |
N/A Low Nitrogen Oxide (NOx) Emission |
Natural Gas Consumption Rate at 10 Pounds per Square Inch Gauge (psig) |
N/A 33,480 SCFH |
Number 2 Fuel Oil Consumption Rate at 2 Pounds per Square Inch Gauge (psig) |
N/A 240 gal/h |
Main Steam Connection Size |
N/A 8 in |
Main Steam Connection Type |
N/A 300# FLG |
Natural Gas Connection Size |
N/A 3 in |
Natural Gas Connection Type |
N/A 150# FLG |
Number 2 Fuel Oil Supply Connection Size |
N/A 1 in |
Number 2 Fuel Oil Supply Connection Type |
N/A NPT |
Number 2 Fuel Oil Return Connection Size |
N/A 3/4 in |
Number 2 Fuel Oil Return Connection Type |
N/A NPT |
Atomizing Air Supply Connection Size |
N/A 1 in |
Atomizing Air Supply Connection Type |
N/A NPT |
Blowdown/Drain Connection Size |
N/A 6 in |
Blowdown/Drain Connection Type |
N/A 150# FLG |
Condensate Return Connection Size |
N/A 2 in |
Condensate Return Connection Type |
N/A NPT for Low and High Temperature |
Make-Up Water Connection Size |
N/A 2 in |
Make-Up Water Connection Type |
N/A NPT (60 to 100 psig) |
Softener Drain Connection Size |
N/A 2 in |
Softener Drain Connection Type |
N/A NPT |
Electrical Power Service Requirements |
N/A 460 VAC, 3 ph, 60 hz, 250 AMPS |
Nitrogen Oxide (NOx) Emission Rate (Correlated to 3 Percent (%) Oxygen (O2)) |
N/A 30 ppm |
Carbon Monoxide (CO) Emission Rate (Correlated to 3 Percent (%) Oxygen (O2)) |
N/A 50 ppm |
