Brands |
N/A Nationwide Boiler's |
Boiler Capacity |
N/A 800 hp27,600 lb/hr |
Design Pressure |
N/A 290 psig |
Main Steam Connection Size |
N/A 8 in |
Main Steam Connection Type |
N/A 300# FLG |
Natural Gas Connection Size |
N/A 3 in |
Natural Gas Connection Type |
N/A 150# FLG |
Atomizing Air Connection Size |
N/A 1 in |
Atomizing Air Connection Type |
N/A NPT |
Blowdown/Drain Connection Size |
N/A 6 in |
Blowdown/Drain Connection Type |
N/A 150# FLG |
| Condensate Return Connection Size2 | N/A 2 in |
| Condensate Return Connection Type3 | N/A NPT |
| Make-Up Water Connection Size4 | N/A 2 in |
| Make-Up Water Connection Type5 | N/A NPT |
Softener Drain Connection Size |
N/A 2 in |
Softener Drain Connection Type |
N/A NPT |
Electrical Power Service Requirements |
N/A 460 VAC, 3 ph, 60 hz, 250 AMPS |
Length |
N/A 53 ft 0 in. |
Width |
N/A 8 ft 6 in. |
Height (with Chassis) |
N/A 13 ft 6 in. |
Shipping Weight |
N/A 89,000 lb |
Operating Weight |
N/A 113,000 lb |
Nitrogen Oxide (NOx) Emission Rate (Correlated to 3 Percent (%) Oxygen (O2)) |
N/A 5 ppm |
Carbon Monoxide (CO) Emission Rate (Correlated to 3 Percent (%) Oxygen (O2)) |
N/A 50 ppm |
Additional Information |
N/A

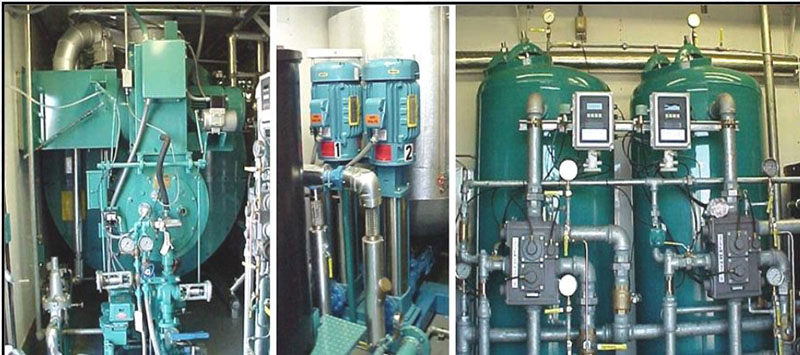

Nationwide Boiler’s ultra low NOx 800 hp (27,600 lbs/hr) Mobile Boiler Room is an enclosed van unit, designed at 290 psig pressure, firing natural gas. It is fully piped and wired and includes the following components:
|
