Brands |
N/A Nationwide Boiler's |
Boiler Capacity |
N/A 650 hp22,500 lb/hr |
Design Pressure |
N/A 250 psig |
| Main Steam Connection Size2 | N/A 6 in |
| Main Steam Connection Type3 | N/A 250# FLG |
Natural Gas Connection Size |
N/A 2-1/2 in |
Natural Gas Connection Type |
N/A 150# FLG |
Blowdown/Drain Connection Size |
N/A 2 in |
Blowdown/Drain Connection Type |
N/A NPT |
Feedwater Connection Size |
N/A 2 in |
Feedwater Connection Type |
N/A NPT |
Instrument Air Connection Size |
N/A 1/2 in |
Instrument Air Connection Type |
N/A NPT |
Electrical Power Service Requirements |
N/A 480 VAC, 3 ph, 60 hz, 100 AMPS |
Length |
N/A 28 ft 10 in. |
Width |
N/A 8 ft 6 in. |
Height |
N/A 9 ft 3 in. |
Shipping Weight |
N/A 36,000 lb |
Operating Weight |
N/A 50,000 lb |
Nitrogen Oxide (NOx) Emission Rate (Correlated to 3 Percent (%) Oxygen (O2)) |
N/A 9 ppm |
Carbon Monoxide (CO) Emission Rate (Correlated to 3 Percent (%) Oxygen (O2)) |
N/A 50 ppm |
Additional Information |
N/A

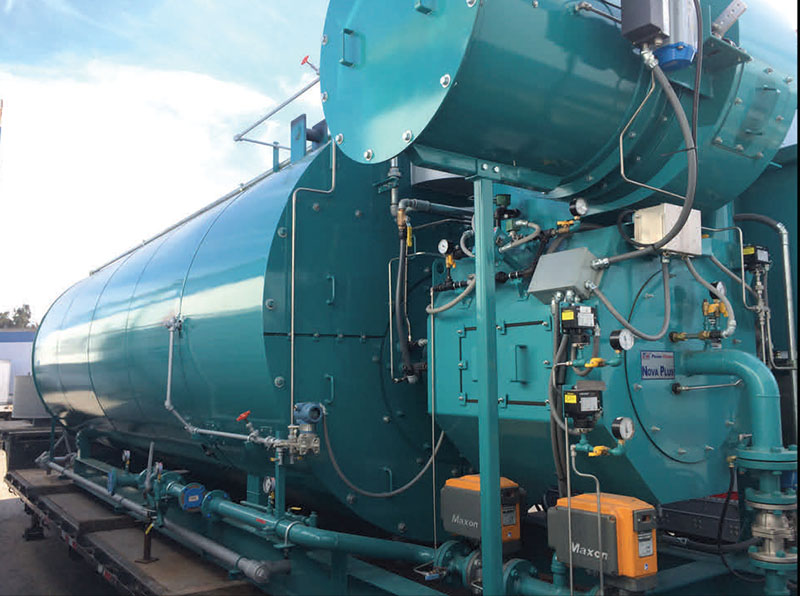

Nationwide Boiler's ultra low NOx, 650 hp (22,500 lbs/hr) skid mounted boiler is designed at 250 psig pressure, firing natural gas. It is fully piped and wired and includes the following components:
|
