Brands |
N/A Nationwide Boiler's |
Boiler Capacity |
N/A 500 hp17,250 lb/hr |
Design Pressure |
N/A 250 psig |
| Natural Gas Consumption Rate1 | N/A 19,900 SCFH |
Number 2 Fuel Oil Consumption Rate |
N/A 142 gal/h |
Main Steam Connection Size |
N/A 8 in |
Main Steam Connection Type |
N/A 300# FLG |
Natural Gas Connection Size |
N/A 3 in |
Natural Gas Connection Type |
N/A 150# FLG |
Number 2 Fuel Oil Supply Connection Size |
N/A 1 in |
Number 2 Fuel Oil Supply Connection Type |
N/A NPT |
Number 2 Fuel Oil Return Connection Size |
N/A 1 in |
Number 2 Fuel Oil Return Connection Type |
N/A NPT |
Feedwater Connection Size |
N/A 2 in |
Feedwater Connection Type |
N/A 300# FLG |
Blowdown/Drain Connection Size |
N/A 6 in |
Blowdown/Drain Connection Type |
N/A 300# FLG |
Make-Up Water Connection Size |
N/A 2 in |
Make-Up Water Connection Type |
N/A 150# FLG |
Electrical Power Service Requirements |
N/A 480 VAC, 3 ph, 60 hz, 150 AMPS |
Length |
N/A 40 ft 6 in. |
Width |
N/A 8 ft 0 in. |
Height |
N/A 13 ft 6 in. |
Shipping Weight |
N/A 58,680 lb |
Operating Weight |
N/A 70,530 lb |
Nitrogen Oxide (NOx) Emission Rate (Correlated to 3 Percent (%) Oxygen (O2)) |
N/A 30 ppm |
Carbon Monoxide (CO) Emission Rate (Correlated to 3 Percent (%) Oxygen (O2)) |
N/A 50 ppm |
Additional Information |
N/A

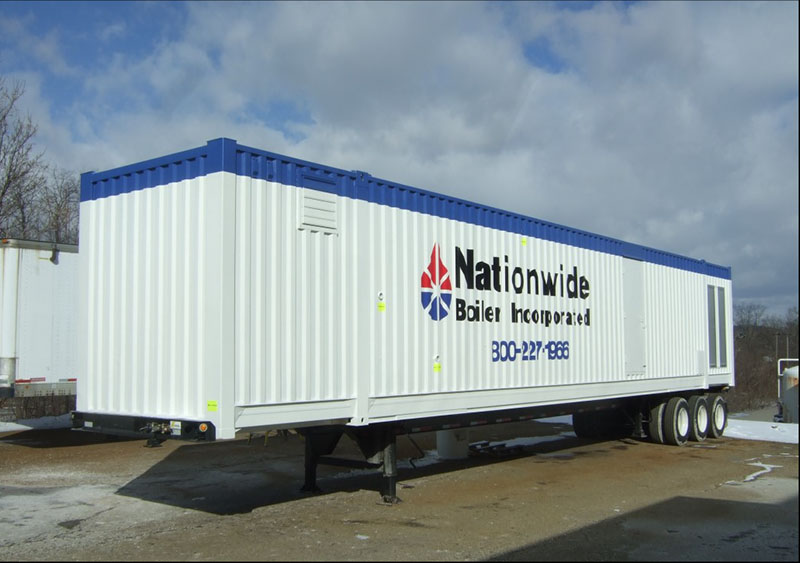

Nationwide Boiler’s low NOx, 500 hp (17,250 lbs/hr) trailer enclosed Cleaver-Brooks firetube boiler is designed at 250 psig pressure, firing natural gas or #2 oil. It is fully piped and wired and includes the following components:
|
