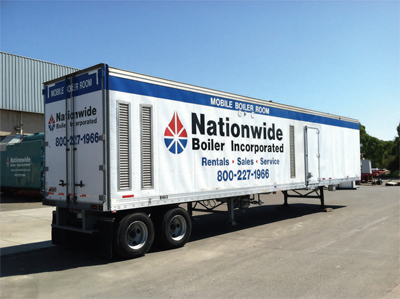

Nationwide Boiler's ultra-low NOx, 250 hp (8,625 lbs/hr) Mobile Boiler Room is an enclosed van unit, designed at 150 psig pressure, firing natural gas (LPG is optional). It is fully piped and wired and includes a firetube boiler, ultra low NOx burner, gas pressure regulator, feedwater system, water softener, chemical feed system, blowdown separator, control panel and valve trim (headers, safeties, blowdown, etc.).
Unit of Measure

Specifications

Brands

 N/A Nationwide Boiler's
Natural Gas Consumption Rate1 N/A 10,500 SCFH

Boiler Capacity

 N/A 250 hp

Design Pressure

 N/A 150 psig

NBI Tag #

 N/A B463

Connection Sizes

Main Steam Connection Size

 N/A 6 in

Main Steam Connection Type

 N/A 300# FLG

Natural Gas Connection Size

 N/A 2 in

Natural Gas Connection Type

 N/A 125# FLG

Blowdown/Drain Connection Size

 N/A 4 in

Blowdown/Drain Connection Type

 N/A 150# FLG

Condensate Return Connection Size

 N/A 2 in

Condensate Return Connection Type

 N/A NPTF

Make-Up Water Connection Size

 N/A 1-1/2 in

Make-Up Water Connection Type

 N/A NPT

Softener Drain Connection Size

 N/A 1-1/2 in

Softener Drain Connection Type

 N/A NPT

Electrical Power Service Requirements

Electrical Power Service Requirements

 N/A 480 VAC, 3 ph, 60 hz, 100 AMPS

Dimensions and Weights

Length

 N/A 48.0 ft

Width

 N/A 8.6 ft

Height

 N/A 13.4 ft

Shipping Weight

 N/A 37,500 lb

Operating Weight

 N/A 54,500 lb

Emissions Data (Natural Gas)

Nitrogen Oxide (NOx) Emission Rate (Correlated to 3 Percent (%) Oxygen (O2))

 N/A 9 ppm

Carbon Monoxide (CO) Emission Rate (Correlated to 3 Percent (%) Oxygen (O2))

 N/A 50 ppm
  • 1 At 5 to 10 psig pressure
