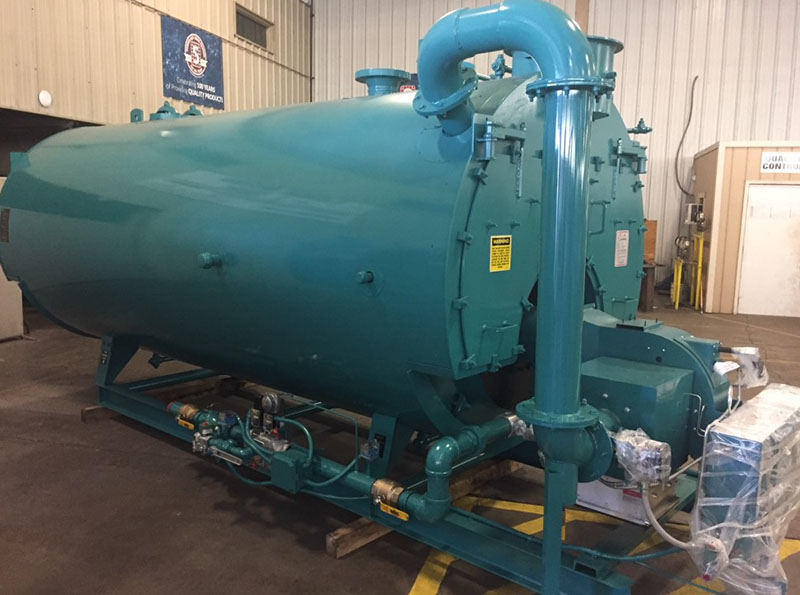

Nationwide Boiler's low or ultra-low NOx, 800 hp (27,600 lbs/hr) package firetube boiler is skid-mounted, designed at 250 psig pressure, firing natural gas (LPG is optional). It is fully piped and wired and includes the boiler, ultra-low NOx burner, gas pressure regulator, control panel, and stub stack.
Unit of Measure

Specifications

Brands

 N/A Nationwide Boiler's

Boiler Capacity

 N/A 800 hp27,600 lb/hr

Design Pressure

 N/A 250 psig

Natural Gas Consumption Rate at 5 Pounds per Square Inch Gauge (psig)

 N/A 33,600 SCFH

Shipping Weight

 N/A 62,300 lb

Industry Standards

 N/A Controls and Safety Devices (CSD-1) National Fire Protection Association (NFPA 85) Underwriter Laboratories (UL)

NBI Tag #

 N/A B801

Features

 N/A Low Nitrogen Oxide (NOx) Emission

Connection Sizes

Main Steam Connection Size

 N/A 8 in

Main Steam Connection Type

 N/A 300# FLG

Natural Gas Connection Size

 N/A 3 in

Natural Gas Connection Type

 N/A NPT

Blowdown/Drain Connection Size

 N/A 2 in

Blowdown/Drain Connection Type

 N/A NPT

Feedwater Connection Size

 N/A 2 in

Feedwater Connection Type

 N/A NPT

Chemical Feed Connection Size

 N/A 1 in

Chemical Feed Connection Type

 N/A NPT

Electrical Power Service Requirements

Electrical Power Service Requirements

 N/A 480 VAC, 3 ph, 60 hz, 60 AMPS

Dimensions and Weights

Length

 N/A 27 ft

Width

 N/A 10 ft 9 in.

Height

 N/A 10 ft 10 in.

Operating Weight

 N/A 97,260 lb

Emissions Data (Natural Gas)

Nitrogen Oxide (NOx) Emission Rate (Correlated to 3 Percent (%) Oxygen (O2))

 N/A 30 ppm

Carbon Monoxide (CO) Emission Rate (Correlated to 3 Percent (%) Oxygen (O2))

 N/A 50 ppm

Note

Note

 N/A Actual Equipment may differ from listed specification.
