Brands |
N/A Nationwide Boiler's |
Boiler Capacity |
N/A 300 hp10,350 lb/hr |
Design Pressure |
N/A 150 psig |
Natural Gas Consumption Rate at 10 Pounds per Square Inch Gauge (psig) |
N/A 12,553 SCFH |
Main Steam Connection Size |
N/A 6 in |
Main Steam Connection Type |
N/A 150# FLG |
Natural Gas Connection Size |
N/A 3 in |
Natural Gas Connection Type |
N/A 150# FLG |
Blowdown/Drain Connection Size |
N/A 1-1/2 in |
Blowdown/Drain Connection Type |
N/A 150# FLG |
Feedwater Connection Size |
N/A 2 in |
Feedwater Connection Type |
N/A NPT |
Chemical Feed Connection Size |
N/A 3/4 in |
Chemical Feed Connection Type |
N/A NPT |
Electrical Power Service Requirements |
N/A 460 VAC, 3 ph, 60 hz, 100 AMPS |
Length |
N/A 18 ft 4 in. |
Width |
N/A 8 ft 11 in. |
Height |
N/A 9 ft 7 in. |
Approximate Shipping Weight |
N/A 25,200 lb |
Approximate Operating Weight |
N/A 40,500 lb |
Nitrogen Oxide (NOx) Emission Rate (Correlated to 3 Percent (%) Oxygen (O2)) |
N/A 9 ppm |
Carbon Monoxide (CO) Emission Rate (Correlated to 3 Percent (%) Oxygen (O2)) |
N/A 50 ppm |
Additional Information |
N/A

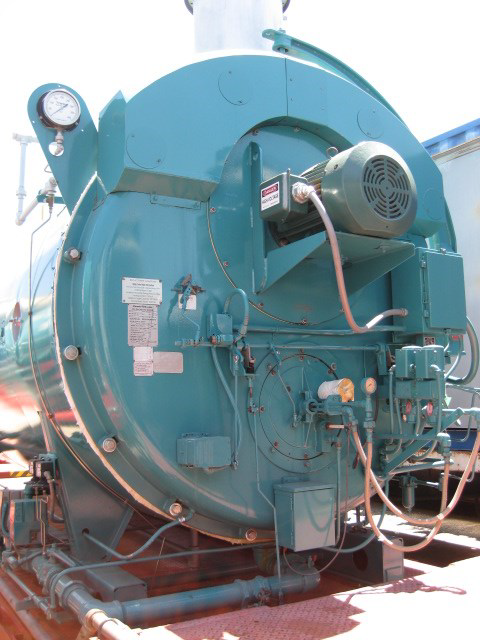

Nationwide Boiler's ultra-low NOx, 300 hp (10,350 lbs/hr) Cleaver-Brooks Model # CBI-700-300-150 firetube boiler, designed at 150 psig pressure, originally built in 2007. It is fully piped and wired and includes the following components:
|
