Brands |
N/A Nationwide Boiler's |
Boiler Capacity |
N/A 200 hp6,900 lb/hr |
Design Pressure |
N/A 250 psig |
Natural Gas Consumption Rate at 5 Pounds per Square Inch Gauge (psig) |
N/A 8,400 SCFH |
Main Steam Connection Size |
N/A 4 in |
Main Steam Connection Type |
N/A 300# FLG |
Natural Gas Connection Size |
N/A 3 in |
Natural Gas Connection Type |
N/A NPT |
Blowdown/Drain Connection Size |
N/A 1-1/4 in |
Blowdown/Drain Connection Type |
N/A NPT |
Feedwater Connection Size |
N/A 1-1/2 in |
Feedwater Connection Type |
N/A NPT |
Chemical Feed Connection Size |
N/A 1/2 in |
Chemical Feed Connection Type |
N/A NPT |
Electrical Power Service Requirements |
N/A 480 VAC, 3 ph, 60 hz, 22 AMPS |
Length |
N/A 17 ft 2 in. |
Width |
N/A 7 ft 5 in. |
Height |
N/A 7 ft 8 in. |
Shipping Weight |
N/A 14,650 lb |
Operating Weight |
N/A 49,400 lb |
Nitrogen Oxide (NOx) Emission Rate (Correlated to 3 Percent (%) Oxygen (O2)) |
N/A As low as 2-1/2 Parts per million (ppm) Nitrogen Oxide (NOx) |
Carbon Monoxide (CO) Emission Rate (Correlated to 3 Percent (%) Oxygen (O2)) |
N/A 30 ppm |
Additional Information |
N/A

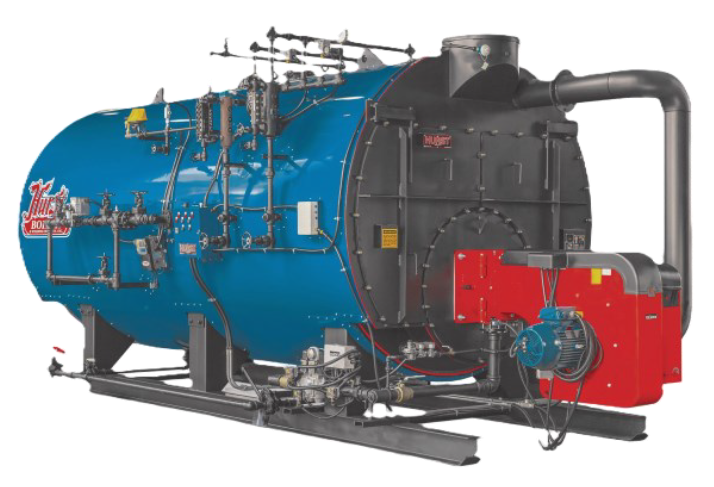

Nationwide Boiler's 200 HP (6,900 lbs/hr) Hurst skid-mounted package firetube boiler is designed at 250 psig for low or ultra-low NOx applications, with your choice burner mounted upon receipt of order. The boiler/burner package will be fully piped and wired and include the following components:
|
